Performance Parameters
|
Maximum Motor Speed |
1300r/min |
Number of Plungers |
3 |
|
Stroke Length mm |
110min |
||
|
Motor Power（55KW） |
|||
|
Plunger Diameter mm |
55 |
45 |
40 |
|
Rated Discharge Pressure Mpa |
20 |
30 |
38 |
|
Theoretical Capacity L/min |
140 |
94 |
74 |
Note: above parameters are theoretical data when the medium proportion is 1.0.

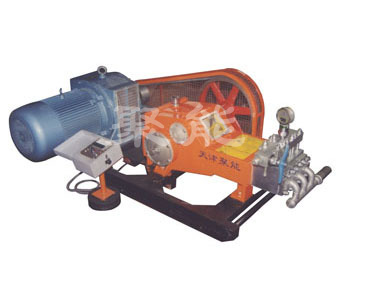

This product is designed according to the market demand and pressure grouting pump, high volume and low price. This product combined split type pump hydraulic end, motivation to use needle bearing type transmission, low noise, low temperature, ensure 24 hours of continuous operation, applicable to a variety of grouting and field profile control well cementing.
