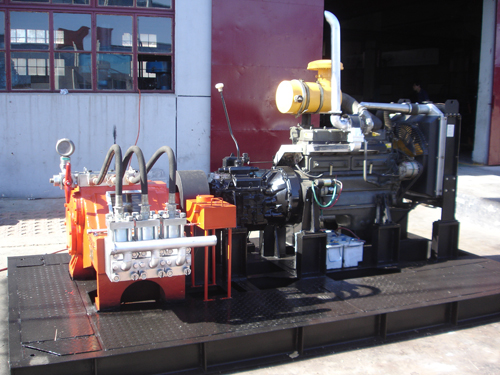

Diesel Engine Gearbox XPB-90E
|
Plunger Diameter mm |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|||||||||
|
Model |
Gears |
L/min |
MPa |
L/min |
MPa |
L/min |
MPa |
L/min |
MPa |
L/min |
MPa |
L/min |
MPa |
L/min |
MPa |
L/min |
MPa |
|
X
P
B
|
90
E |
Ⅰ |
33 |
50 |
41 |
50 |
50 |
50 |
60 |
45 |
70 |
40 |
82 |
35 |
94 |
27 |
107 |
25 |
|
Ⅱ |
58 |
50 |
71 |
50 |
86 |
50 |
103 |
45 |
121 |
40 |
140 |
35 |
161 |
27 |
183 |
25 |
|
|
Ⅲ |
96 |
48 |
119 |
39 |
144 |
32 |
171 |
27 |
201 |
26 |
233 |
22 |
268 |
17 |
305 |
15 |
|
|
Ⅳ |
|
Ⅳ |
|
V |
|
VI |
|
R |
|
档 |
|
不 |
|
可 |
|
用 |
|
|
V |
|
|
|
|
|
|
|
|
|||||||||
|
VI |
|
|
|
|
|
|
|
|
|||||||||
|
R |
|
|
|
|
|
|
|
|
|||||||||
Note: above parameters are theoretical data when the medium proportion is 1.0. Diesel engine power is 121kW/1500rpm.
This product is newly developed various models of the replacement of the mud pump. Equipped with diesel engine, the hydraulic end products adopts the split type pump disassembly is convenient. Power end USES the whole rolling bearing type transmission, super power, low noise and environmental protection product. Seal life can be increased by 60%. Low temperature, ensure 24 hours of continuous operation, convenient maintenance, with higher price performance ratio. Suitable for foundation treatment of high-pressure rotary jet grouting, curtain grouting, soil retaining cofferdam, mine well plugging, barrels, and protecting slope anchorage, etc.
Note: the product was awarded the national patent.
