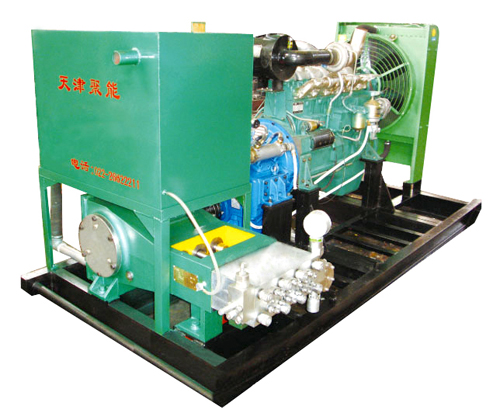

High Pressure Fixed Cleaning Machines QX-150C,100C
QX - 150 - c type high pressure cleaner is the product developed by our company can be the super high pressure cleaning machine. The cleaning machine equipped with motor and diesel engine according to the customer request. Is suitable for the size of caliber pipeline cleaning, heat exchanger, condenser, ships, chemical cleaning, cleaning, oil fields, buildings, and other artifacts of cleaning cleaning.
This product the power end of transmission () between the crankshaft and connecting rod bearing type. Lubrication method USES the splash lubrication, because the motor power is larger, power side with water interlayer cooling oil temperature, stuffing box also used water cooling. Cooling water and the water pipe connection to ensure that the cooling effect, this method can be 24 hours of continuous operation. This product the hydraulic end is equipped with safety valve, throttle valve, its own system, adjustable throttle valve to adapt to the different traffic demand.
This product has the following features:
• use single gun, gun, differential pressure range is small.
Type, adopted by spray gun using foot is safe, convenient, can guarantee the working clearance reciprocating pump in a state of low pressure (no load).
• pressure stability, low noise, easy operation, convenient maintenance.
• this product is equipped with a high pressure rubber hose, spray gun, common nozzle.
Performance Parameter List
Maximum Diesel Speed |
1500rpm |
Stroke Length |
408 |
||||||
Diesel Power |
95kW |
113kW |
138 kW |
165 kW |
200 kW |
Plunger Diameter |
model |
||
Theoretical Capacity |
Rated Discharge Pressure (MPa) |
||||||||
L/min |
m3/h |
||||||||
32 |
1.92 |
120 |
145 |
|
|
|
20 |
S150 |
|
39 |
2.34 |
100 |
120 |
145 |
|
|
22 |
||
50 |
3 |
78 |
93 |
110 |
135 |
160 |
25 |
||
63 |
3.78 |
60 |
74 |
90 |
105 |
130 |
28 |
||
72 |
4.32 |
|
65 |
75 |
95 |
115 |
30 |
S100 |
|
82 |
4.92 |
|
|
69 |
83 |
101 |
32 |
||
93 |
5.58 |
|
|
60 |
73 |
89 |
34 |
||
110 |
6.6 |
|
|
|
62 |
75 |
37 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
