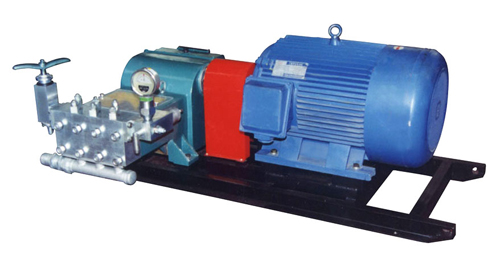

High Pressure Water Injection Pump 3S2
This product power end the whole rolling bearing, gear transmission, suitable for long time, low temperature rise, low noise, among other products at the same level, is one of the most cost-effective new products.
Performance Parameter List
|
Input Speed |
1480r/min |
Stroke Length |
100mm |
|||||
|
Theoretical Capacity |
Motor Power（KW） |
Plunger Diameter
mm |
||||||
|
22 |
37 |
45 |
55 |
75 |
90 |
|||
|
M3/h |
L/min |
Rated Discharge Pressure （Mpa） |
||||||
|
1.00 |
17 |
63 |
// |
// |
// |
// |
// |
15 |
|
1.80 |
30 |
36 |
64 |
78 |
// |
// |
// |
20 |
|
2.90 |
48 |
22 |
40 |
49 |
60 |
81 |
// |
25 |
|
4.20 |
70 |
15 |
28 |
35 |
42 |
57 |
70 |
30 |
|
4.80 |
80 |
13 |
26 |
32 |
39 |
53 |
62 |
32 |
|
5.70 |
95 |
11 |
21.5 |
26 |
32 |
44 |
50 |
35 |
|
7.38 |
123 |
8.7 |
16.5 |
20 |
25 |
34 |
40 |
40 |
|
9.36 |
156 |
6.9 |
12 |
16 |
19.5 |
26.5 |
30 |
45 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
